FlexCtrl embedded SCADA
Universal, real-time capable automation platform
FlexCtrl is a development by BitCtrl Systems GmbH - a successful product that is in productive use with many customers.
FlexCtrl is a highly modular software that can be used as a central real-time broker in an embedded system.
FlexCtrl is a highly modular software that can be used as a central real-time broker in an embedded system.
What is FlexCtrl?

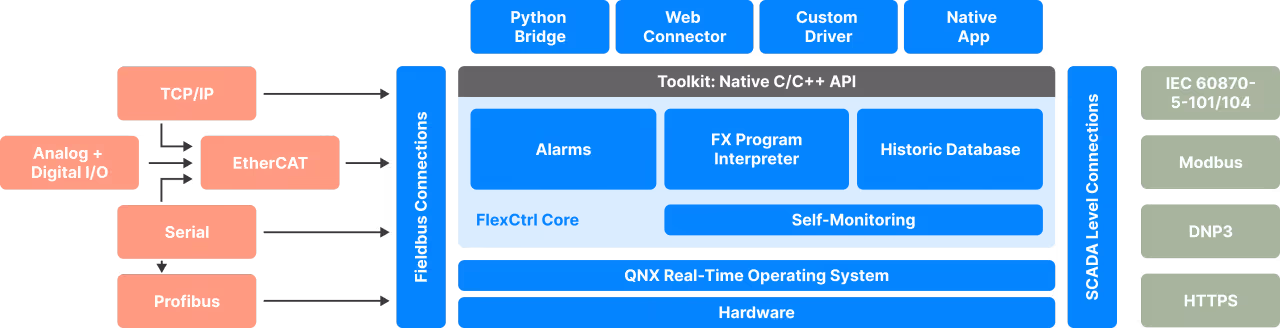

FlexCtrl is a highly modular software that can be used as a central real-time broker in an embedded system. The real-time database forms the heart, surrounded by clients, drivers, and the configuration system. The configuration system defines a set of "Process Variables" (PVs) that collectively describe the system's data points. The runtime system with the real-time database brings these PVs to life, allowing clients to interact with them.
Generic clients include the historian client, alarm database, and logging and monitoring tools. Standard drivers are provided to enable external communication, such as EtherCAT, Modbus, or IEC 60870. Special drivers are developed based on customer-specific hardware. All clients use the FlexCtrl Toolkit to communicate with the real-time database in a unified way.
FlexCtrl implements a portion of IEC 61131-3, allowing customers to program their own algorithms and functions in conjunction with FlexCtrl.
FlexCtrl - Modular Structure
Application Scenario
- FlexCtrl
FlexCtrl enables the connection of a heterogeneous installation base with a central system.
- What needs to be connected?
On one side: Legacy systems without security or standardization, such as machine parks in a factory hall, medical devices in a hospital, or control equipment in an energy distribution station.
On the other side: Central systems that are operated on-site (SCADA, MES, ERP) and are mostly cloud-based.- Goal:
Establish a seamless but secure, bidirectional connection between both worlds.
- Challenges:
In most cases, there is no simple 1:1 mapping between these two worlds. While connecting devices to central systems is relatively simple, securing the connection from the central system to the devices is far more complex.
- Solution with FlexCtrl:
FlexCtrl connects a heterogeneous installation base with a central system and overcomes these challenges through its modular architecture and unified communication via the real-time database.
Partners
Siemens Energy
For Siemens Energy, we are developing the software for the next generation of high-voltage circuit breaker control devices. The development scope includes the complete software stack - from bootloader through real-time operating system and firmware to an interactive web interface for operation and visualization. The middleware of this solution is our FlexCtrl embedded SCADA.
Georg Fischer GF Casting Solutions Leipzig GmbH
Here, FlexCtrl is widely used in industrial automation for foundry processes.
Areva
At Areva, FlexCtrl was used in an online monitoring system for large transformers.
Waterway Junction Magdeburg
At the Waterway Junction Magdeburg, FlexCtrl is used with integrated video monitoring.
Gasunie, NL
FlexCtrl is used in over 1,000 gas distribution stations at Gasunie.
Do you have questions or would like to work with us?
Then write to us at: info@bitctrl.de
